Get started with your new
iXoundWear™ Sport/Running Cap
Nano 4th Generation

Recommended installation - step by step

This page is printer friendly.
Print a copy for future reference.

Before you start...

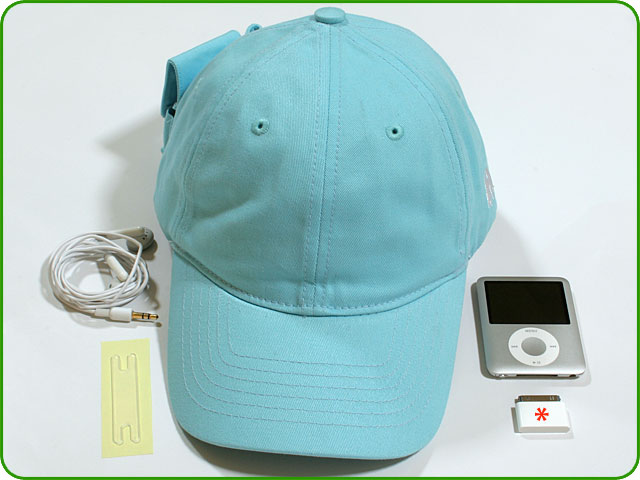

Place in front of you the following elements: your new iXoundWear™ cap, your earbuds of choice, your iPod® Nano, one of the two wire-spools provided with the cap and the optional Nike®+iPod® module (marked with an asterisk in the picture).

Note: Though your iXoundWear™ Sport/Running Cap for iPod® Nano 4G is compatible with the Nike®+iPod® Sport kit, such kit is not required in order to use the cap.

Step 1

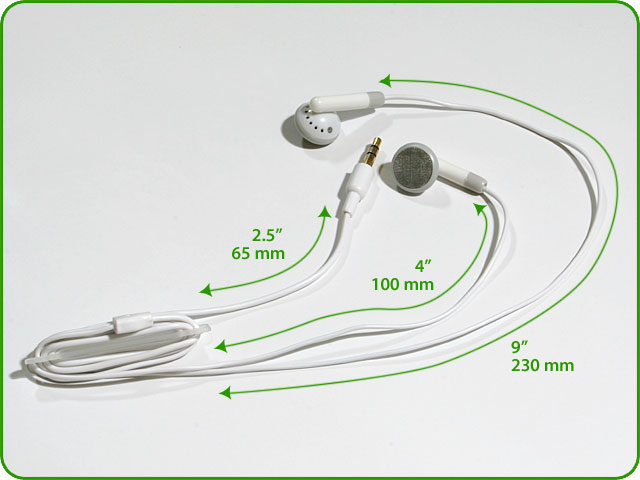

Wind up the headset cord around the wire-spool. Give the right earbud wire an additional turn (in order to make it shorter). The length of wire left between the headset plug and the wire spool should be 2.5" (65 mm). The two stretches of wire left between the earpieces and the wire-spool should measure respectively 4" (100 mm) for the right one and 9" (230 mm) for the left one.

Step 2

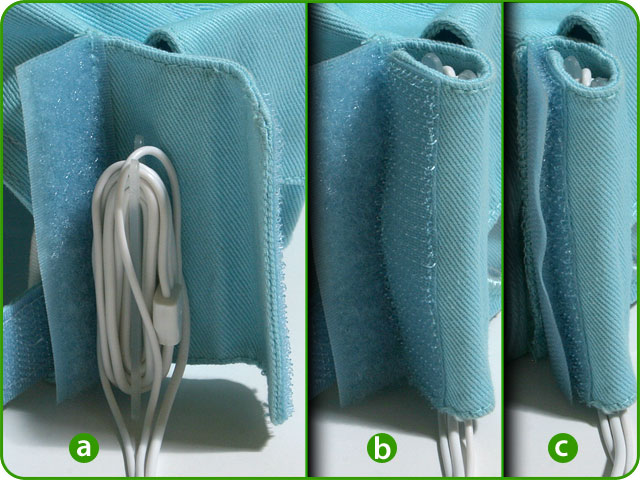

Open the wire pocket (located next to the player pocket) by pulling apart the two Velcro® halves and lay the wire bundle against the open pocket (picture a).
Wrap the wire bundle tight (picture b) and secure the pocket closed by pushing the two Velcro® halves together (picture c).

Step 3

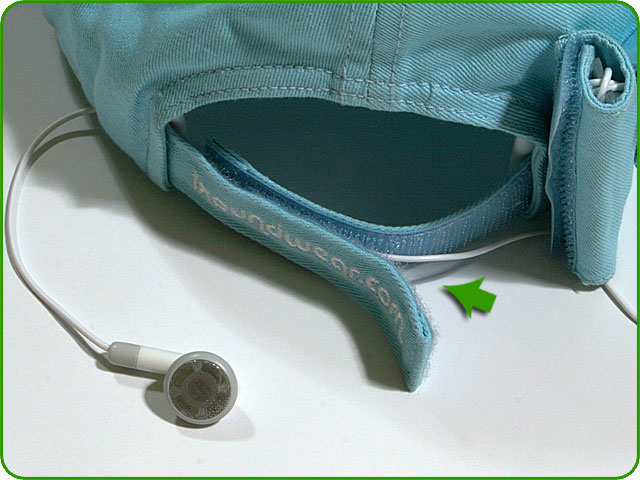

Open the back Velcro® strap. Run the left earbud wire along the strap. Close the strap.

Step 4

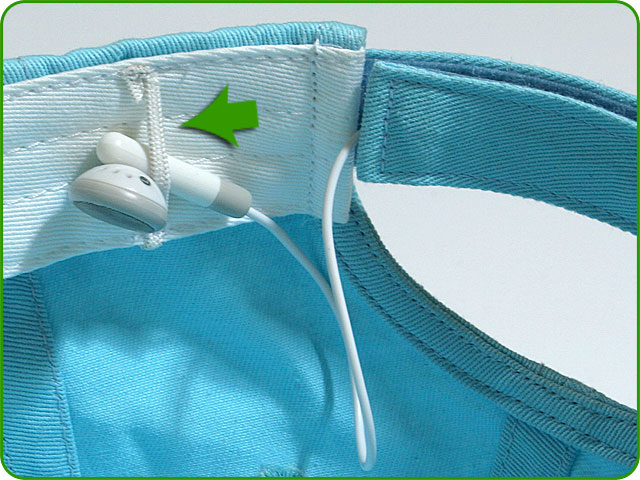

Stretch the elastic loop (internally located next to the Velcro® strap) and pass the left earbud through it (the loop supports the wire and makes the left earbud fall next to the left ear).

Step 5

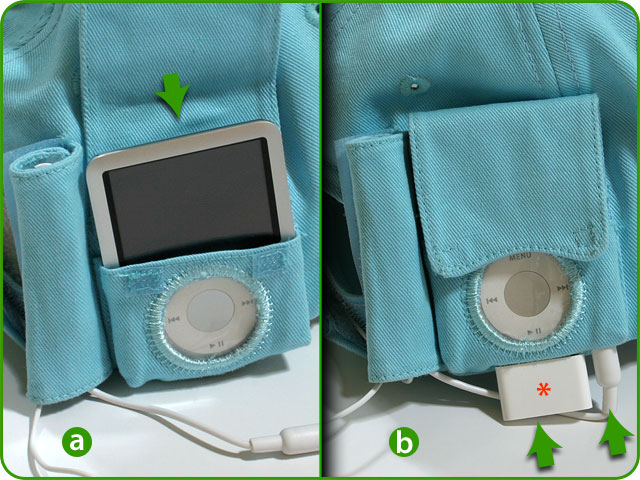

Slide your iPod® Nano into the player pocket (picture a).
Close the player pocket protective flap.
Connect the headset plug to the mini-jack at the bottom of your iPod® and the optional Nike®+iPod® module (picture b).

Step 6

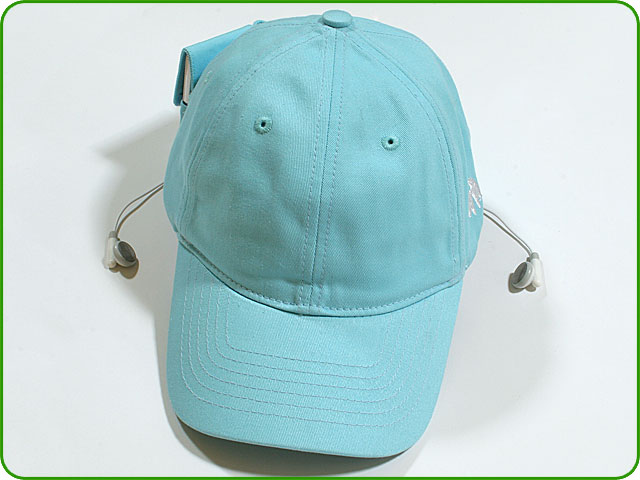

Done! Put it on and plug in your earbuds.
Enjoy your new iXoundWear™ cap.
